Specifications
| Weight | 0.250 kg |
|---|---|
| Manufacturer | PHOENIX CONTACT |
| Model | |
| Part Number | 28 66 44 6 |
| Condition |

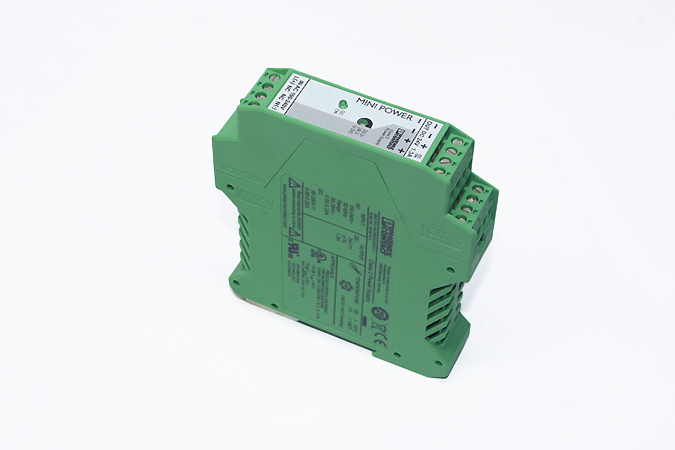

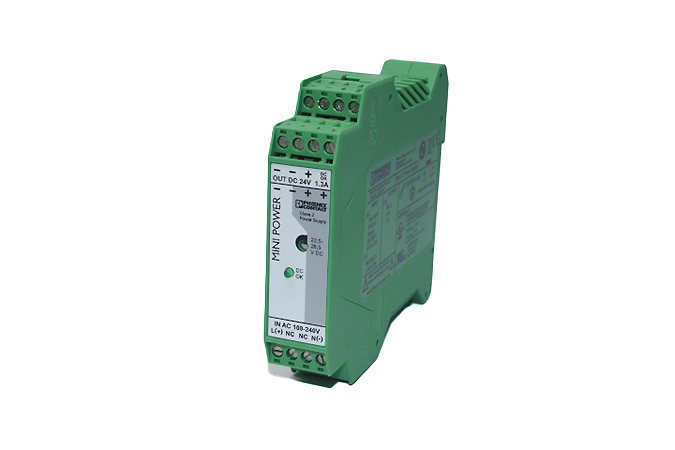

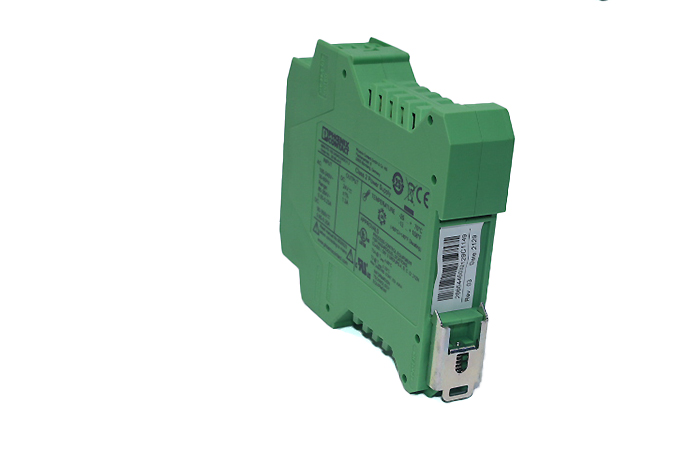

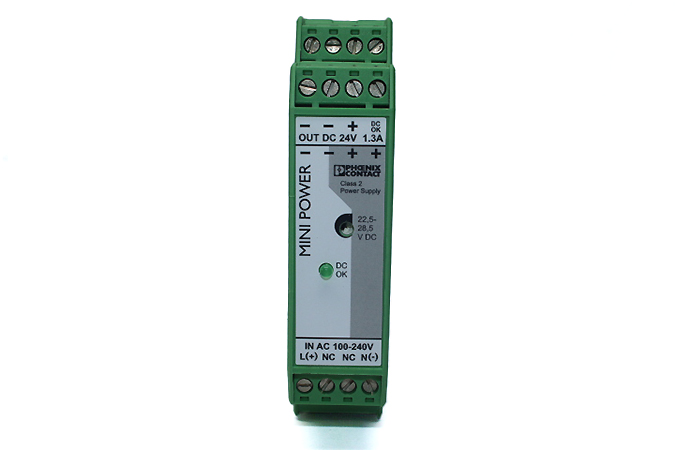

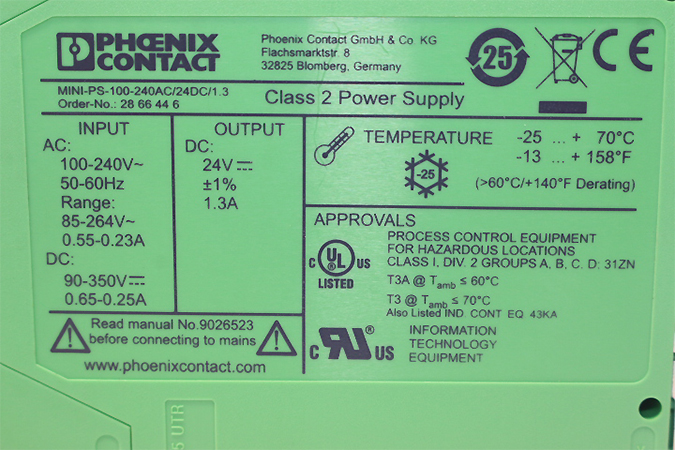

PHOENIX CONTACT MINI-PS-100-240AC/24DC/1.3 Power supply unit 28 66 44 6
We are NOT an authorized distributor for PHOENIX CONTACT
- ManufacturerPHOENIX CONTACT
- ModelMINI-PS-100-240AC/24DC/1.3
- SKU052285
264 $
1 in stock
Description
Manufacturer: PHOENIX CONTACT
Model: MINI-PS-100-240AC/24DC/1.3
Type: Power supply unit
Part No: 28 66 44 6
Nominal input voltage range: 100 … 240 V AC (85 … 264 V AC)/ 90 … 350 V DC
Frequency: 50 … 60 Hz
Current: 0.65 … 0.25 A
Nominal output voltage: 24 V DC (22.5 … 28.5 V DC)
Current: 1.3 A
Power: 31.2 W
Connection method: Pluggable screw connection
Housing material: Plastic
Degree of protection: IP20
Type of housing: Polyamide PA, color: green
Mounting position: horizontal DIN rail NS 35, EN 60715
Ambient Temperature: -25 °C … 70 °C
